Eoulu futureX Series Switch Matrix- SWIT-009
· Support 6-inch, 8-inch and 12-inch wafers

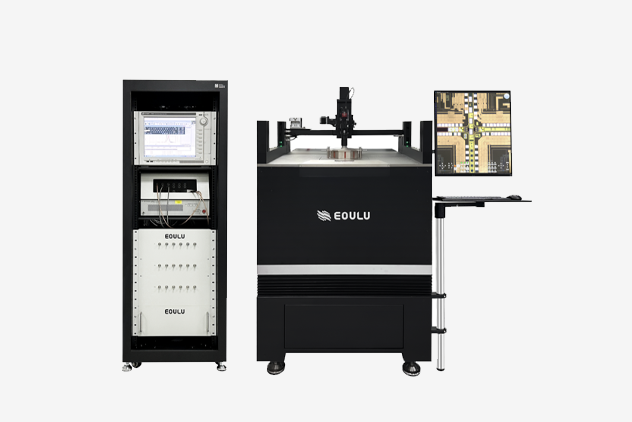

· Can be used with mainstream probe stations around the world to upgrade to fully automatic testing
· Provide faster, more accurate, high-precision, and high-efficiency fully automatic solutions
· Can be used with mainstream probe stations around the world to upgrade to fully automatic testing
· Provide faster, more accurate, high-precision, and high-efficiency fully automatic solutions
Category:
Probe Station
Contact Information
CONTACT NOW- Product Features
- Product Mix
- Product Parameters
- Instructions
-
Input ports: 12, Output ports: 18, Maximum voltage 3000 V
Flexible switching of high-voltage channels for automated testing
-
-

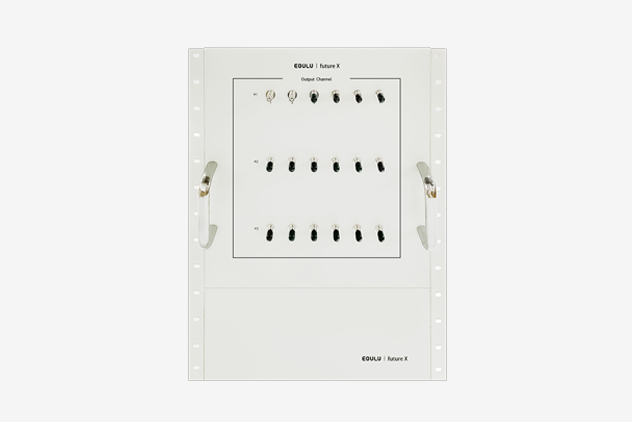

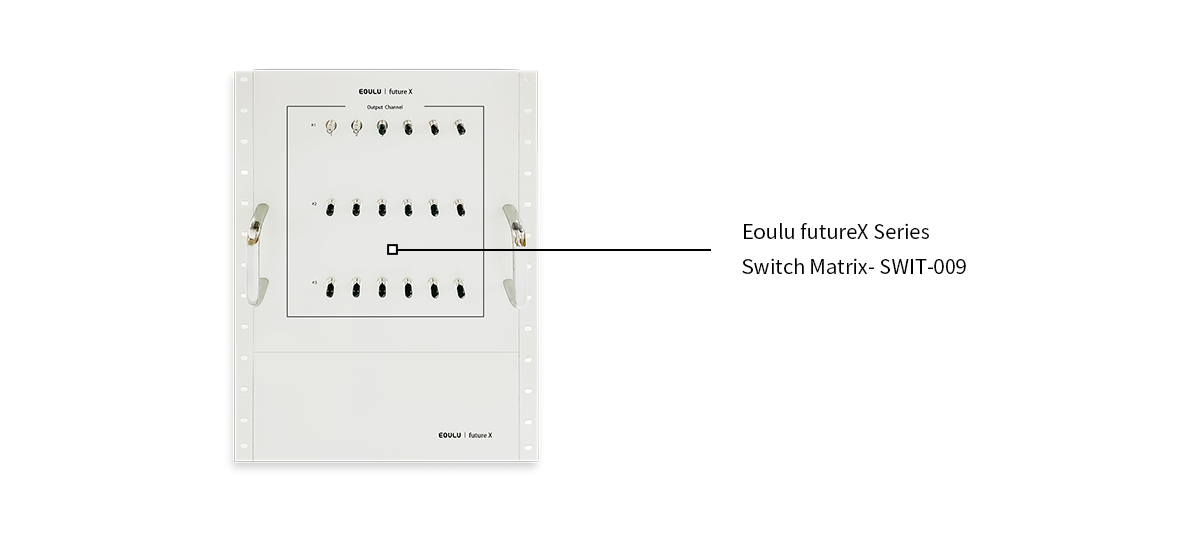

Eoulu futureX Series Switch Matrix- SWIT-009
SWIT-009 System Performance
1 Input ports 12 2 Output ports 18 3 Maximum voltage 3000 V 4 Maximum current 1 A DC, 5 A Pulse ( 10 ms Pulse Width , 10% Duty Cycle ) 5 Maximum opening time <1 ms@ 30 V 6 Maximum closing time <1 ms @ 30 V 7 Input Connector SHV-F 8 Output Connector SHV-F 9 Communication interfaces Ethernet / RS232 10 Accessories 2 m power cable x 1 pcs
3 m network cable x 1 pcs
2 m RS232 cable x 1 pcsSWIT-009 Technical Specifications
No. Item Minimum Typical Maximum 1 Leakage current in channel 15.80 pA 42.19 pA 105.71 pA 2 Leakage current between channels 1.23 pA 93.47 pA 276.88 pA 3 Via resistance 59 mohm 63 mohm 71 mohm 4 Insulation resistance in channel 13.45 Tohm 664.66 Tohm 7531 Tohm 5 Insulation resistance between channels 10.83 Tohm 186.3 Tohm 2438.26 Tohm 6 Capacitance 0.05 pF @ 1 MHz 0.22 pF @ 1 MHz 0.71 pF @ 1 MHz 7 Inductance 0.96 pH @1 MHz 1.11 pH @ 1 MHz 1.25 pH @ 1 MHz SWIT-009 Relay Technical Specifications
1 Maximum switching voltage (DC or Peak AC) 1000 V 2 Maximum switching current (DC or Peak AC) 1A 3 Maximum power 100 W 4 Switch control voltage 24 V 5 Typical via resistance 50 mΩ 6 Minimum insulation resistance 10 TQ (RH < 45%, test voltage 100 V) 7 Breakdown voltage (30 ~ 40 AT) 3000 V DC 8 Maximum opening time 1.1 ms 9 Typical capacitance 0.5 pF (switch on @ 10KHz) SWIT-009 Dimensions and Weight
1 Typical dimensions (W x D x H) 602 mm x 494 mm x 631 mm 2 Maximum dimensions (W x D x H) 642 mm x 494 mm x 631 mm 3 Net weight ~ 66 kg 4 Shipping weight ~ 90 kg SWIT-009 Facility Planning
1 Power supply 220 VAC, 50 Hz 2 Operating ambient temperature 0~55℃ 3 Operating relative humidity 10%~95%RH (@ 25℃, no condensation) 4 Storage ambient temperature -35~70℃ 5 Storage relative humidity 10~95%RH (@ 25℃, no condensation)
