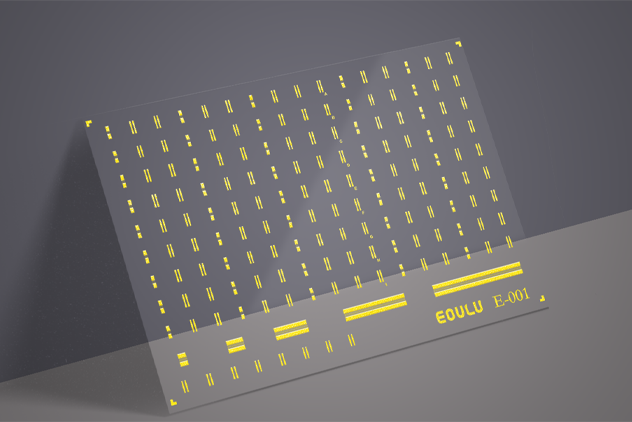

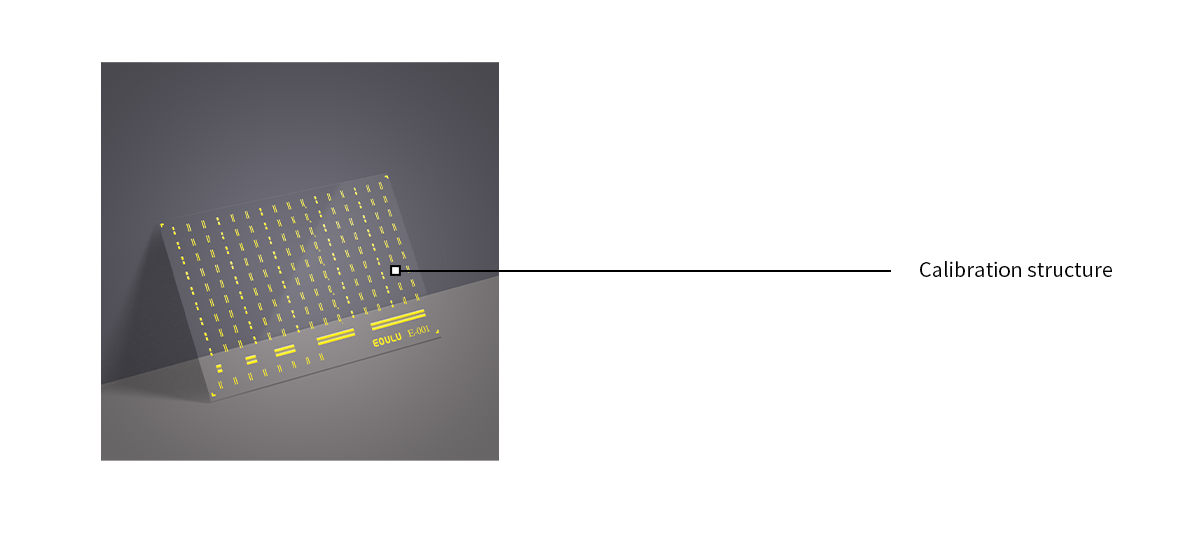

Calibration Substrate: E-001
· Applicable frequency: ≤ 67 GHz
· Dimensions: 20 mm x 14 mm or 22 mm x 15 mm
Category:
Calibration Substrate
Contact Information
CONTACT NOW- Product Features
- Product Mix
- Product Parameters
- Instructions
-
Up to 67 GHz

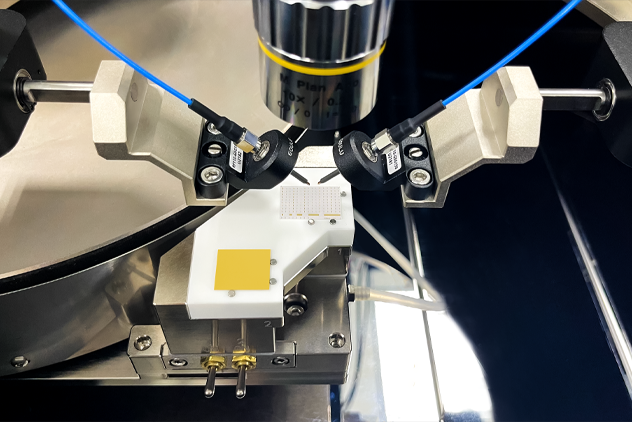

Achieve automatic calibration when used with futureCal
Very cost-effective
Domestic fast delivery
-
-

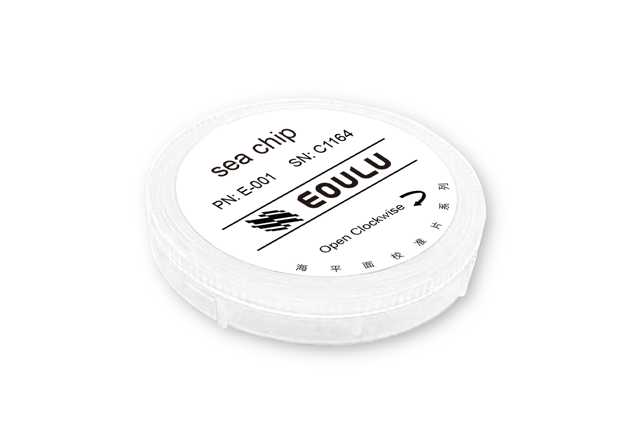

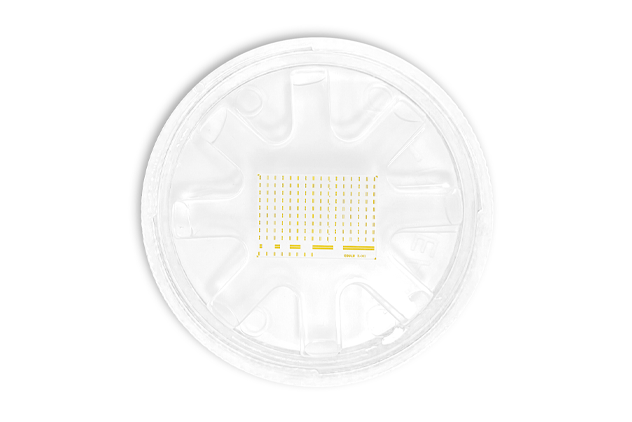

Sea chip Series - Calibration Substrate *
Part Number Probe Pitch Available Configuration Frequency Dimensions ** E-001 100~250 μm GSG ≤ 67 GHz 20 mm x 14 mm
or
22 mm x 15 mm
E-002 100 ~ 400 μm GSG, Right Angle ≤ 67 GHZ E-003 250 ~ 1250 μm GSG ≤ 67 GHz E-004 250 ~1250 µm GS/SG ≤ 40 GHz E-005 100~250 µm GS/SG ≤ 40 GHz E-006 100 ~ 125 μm GSGSG/GSGS/SGSG/SGS ≤ 67 GHz E-007 75 ~150μm GSG ≥ 110 GHz E-008 50 ~ 150 μm GSG/GS/SG ≤ 67 GHz E-009 300~650 µm GSGSG ≤ 67 GHz 300~ 950 μm GSSG ≤ 67 GHz E-012 150 μm GSGSG ≤ 67 GHz E-013 175~250 μm GSSG/GSS/ SSG/ GS ≤ 67 GHz E-015 150~225 μm GSGSG/GSGS/ SGSG/SGS ≤ 67 GHz E-018 100 ~150 μm GSSG ≤ 67 GHz E-022 250 µm GSGSG/GSGS/SGS ≤ 67 GHz * In some cases, such as using different brands of probes and special pitch probes or testing in special environments, calibration parameters may not be applicable, but this does not mean the quality of the calibration substrates is defective. Please contact Eoulu to confirm and update the parameters
** These dimensions are average values for reference only, and the actual dimensions shall prevail
Product parameters are subject to change without prior notice.All product images are subject to the actual products, and Suzhou Eoulu
System Integration Co., Ltd. reserves the interpretation right for the content.
