Manual DC positioner: A-101
· Travel Range (X/Y/Z): 12.5 mm/12.5 mm/12.5 mm
· Mounting: Magnetic
· Footprint (W×D): 65 mm × 65 mm
· Application: IV/CV
Category:
Positioner
Contact Information
CONTACT NOW- Product Features
- Product Mix
- Product Parameters
- Instructions
-

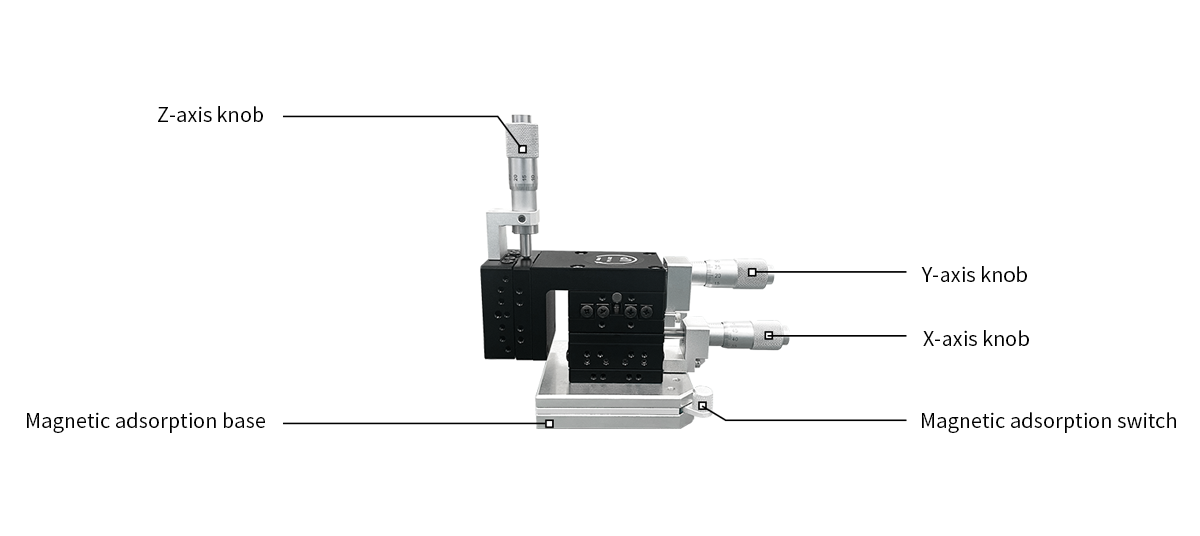

Entry-level manual DC positioner
Used for IV/CV testing
Small size, space saving
Magnetic adsorption for quick positioning
-
-
Entry-level Manual DC Positioners
A-101
1 Feature Resolution < 5 μm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm / 12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 65 mm x 65 mm 5 Application IV/CV A-102 * 1 Feature Resolution < 5 μm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm / 12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 65 mm x 65 mm 5 Application IV/CV * Add a customized adapter
Entry-level Manual RF Positioners
A-201
1 Feature Resolution < 5 µm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm/12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 65 mm x 65 mm 5 Application RF and multi-contact/mixed-signal
probing (East or West)A-202
1 Feature Resolution < 5 µm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm /12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 65 mm x 65 mm 5 Application RF and multi-contact/mixed-signal
probing (North or South)High Performance Manual DC Positioners
A-503
1 Feature Resolution < 2 µm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm / 12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 83 mm x 83 mm 5 Application IV/CV High Performance Manual RF Positioners
A-301
1 Feature Resolution < 2 μm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm / 12.5 mm 3 Mounting Bolt down 4 Footprint (WxD) 113.3 mm x 142.5 mm 5 Application RF and multi-contact/mixed-signal
probing (East or West)A-501 1 Feature Resolution < 2 μm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm / 12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 83 mm x 83 mm 5 Application RF and multi-contact/mixed-signal
probing (East or West)A-502
1 Feature Resolution < 2 μm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm / 12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 83 mm x 83 mm 5 Application RF and multi-contact/mixed-signal
probing (North or South)mmW Positioners
A-601
1 Feature Resolution < 2 μm 2 Travel Range (X/Y/Z) 25 mm / 25 mm / 13 mm 3 Mounting Bolt down 4 Footprint (WxD) 169 mm x 108 mm 5 Application mmWave (West) A-602
1 Feature Resolution <2 μm 2 Travel Range (X/Y/Z) 25 mm / 25 mm / 13 mm 3 Mounting Bolt down 4 Footprint (WxD) 169 mm x 108 mm 5 Application mmWave (East) Motorized Positioners
A-801 *
A-801 K-101
1 Feature Resolution ** <2 μm 2 Travel Range (X/Y/Z) 12.5 mm / 12.5 mm / 12.5 mm 3 Mounting Magnetic 4 Footprint (WxD) 83 mm x 83 mm 5 Application IV/CV/RF/multi-contact/mixed-signal
probing* One A-801 motorized positioner should be paired with at least one K-101 control box
One K-101 control box can control up to two A-801 motorized positioners
* Probe arm not included
** Motor backlash ±5 μm
Part Number
A-101 DC POSITIONER, BASE, MAGNETIC, STANDARD A-102 DC POSITIONER, BASE, MAGNETIC, STANDARD WITH ADAPTER A-201 RF POSITIONER, BASE, MAGNETIC, EAST / WEST, WITH ARM A-202 RF POSITIONER, BASE, MAGNETIC, NORTH / SOUTH, WITH ARM A-301 HIGH PERFORMANCE RF POSITIONER, BOLT DOWN, EAST / WEST, WITH ARM A-501 HIGH PERFORMANCE RF POSITIONER, MAGNETIC, EAST / WEST, WITH ARM A-502 HIGH PERFORMANCE RF POSITIONER, MAGNETIC, NORTH / SOUTH, WITH ARM A-503 HIGH PERFORMANCE DC POSITIONER, MAGNETIC, WITH ADAPTER A-601 HIGH PERFORMANCE MMW WEST POSITIONER A-602 HIGH PERFORMANCE MMW EAST POSITIONER A-801 MOTORIZED POSITIONER WITHOUT ARM K-101 CONTROLLER FOR MOTORIZED POSITIONER, A-801 RFA-010 RF ARM EAST / WEST, FOR A-801 RFA-012 RF ARM SOUTH / NORTH, FOR A-801 Product parameters are subject to change without prior notice.All product images are subject to the actual products, and Suzhou Eoulu System Integration Co., Ltd. reserves the interpretation right for the content.
