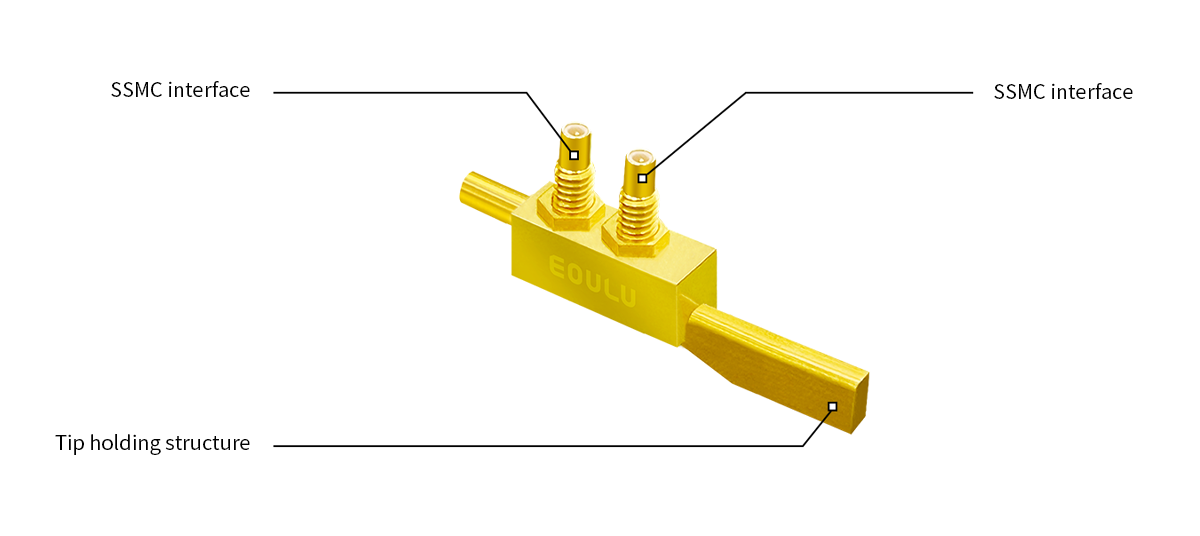

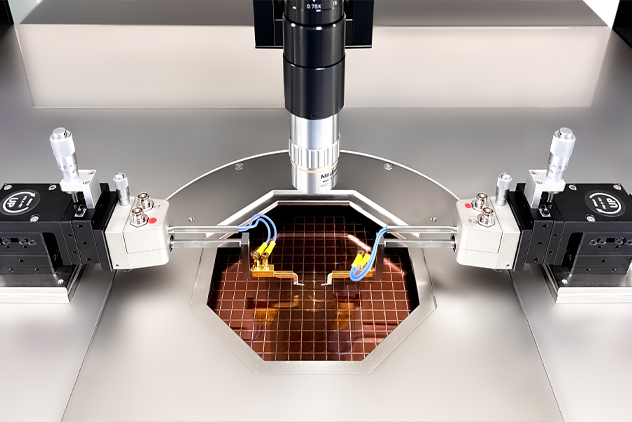

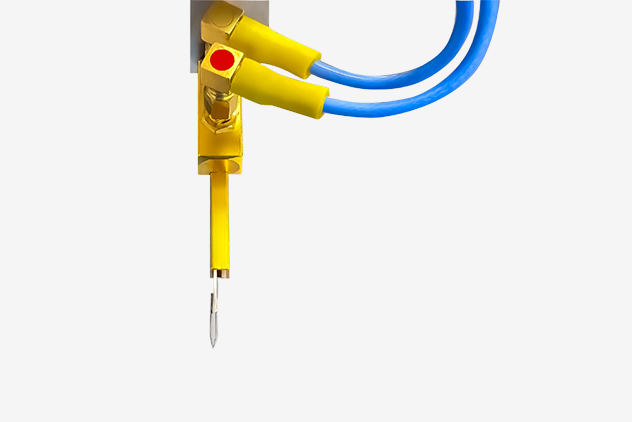

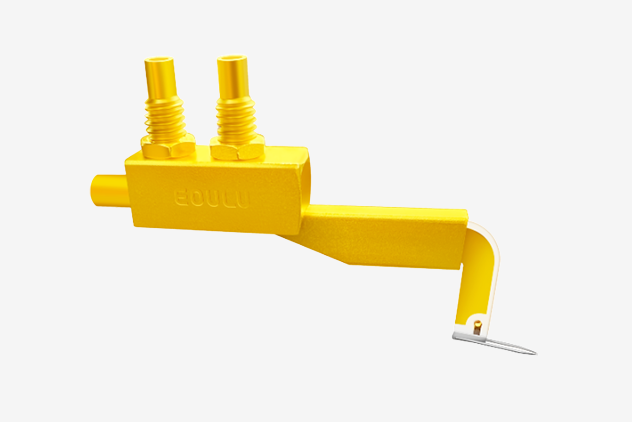

DC Probe Holder: B-106
· Frequency range: DC ~ 100 MHz
· Characteristic impedance: 50 Ω
· Wide operating temperature: -60℃ ~ 150℃
· Connector: SSMC
· Using AttoGuard technology: up to fA, fF testing
· Characteristic impedance: 50 Ω
· Wide operating temperature: -60℃ ~ 150℃
· Connector: SSMC
· Using AttoGuard technology: up to fA, fF testing
Category:
DC Probe Mount
Contact Information
CONTACT NOW- Product Features
- Product Mix
- Product Parameters
- Instructions
-
Meet the wide temperature range test of -60°C ~ 300°C
Available for fA and fF testing

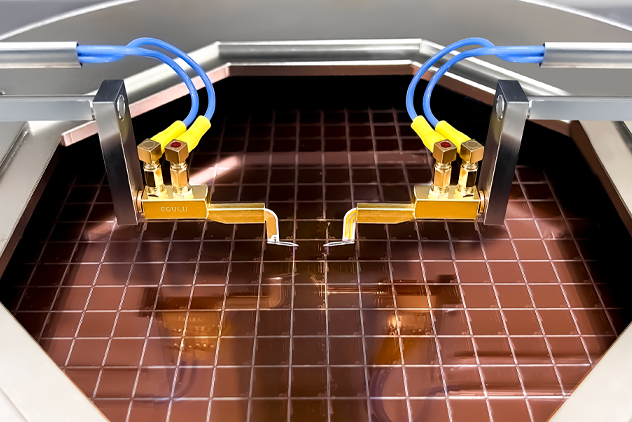

Kelvin (4-wire) test
High reliability and stability
-
-
B-001 Electrical Specifications
1 Characteristic Impedance 50 Ω 2 Frequency Range DC ~ 100 MHz 3 Maximum DC Current 1A* 4 Maximum DC Voltage 500 V 5 Diameter of Needle 250 µm 6 Connector SSMC * DC current
B-101 Replaceable Probe Tips
Part Number Description D-001 REPLACEMENT PROBE TIP, 10 μm DIAMETER, P7, FOR B- 101, BOX OF TEN D-002 REPLACEMENT PROBE TIP, 19 μm DIAMETER, P7, FOR B- 101, BOX OF TEN D-021 REPLACEMENT PROBE TIP, 10 μm DIAMETER, TUNGSTEN, FOR B- 101, BOX OF TEN D-022 REPLACEMENT PROBE TIP, 19 μm DIAMETER, TUNGSTEN, FOR B- 101, BOX OF TEN B-102 Electrical Specifications
1 Characteristic Impedance 50 Ω 2 Frequency Range DC~ 100 MHz 3 Maximum DC Current 1A* 4 Maximum DC Voltage 500 V 5 Body Material Gold plated 6 Connector SSMC * DC current
B-102 Replaceable Probe Tips
Part Number Description D-003 REPLACEMENT PROBE TIP, 10 μm DIAMETER, FOR B-102, BOX OF TEN D Series Probe Tips Electrical Specifications
1 Characteristic Impedance 50 Ω 2 Maximum DC Current 1A* 3 Maximum DC Voltage >500 V 4 Diameter of Needle 500 μm * DC Current（Due to the different tip radius, the DC current is only applied to the tip whose radius is more than 10 μm）
Part Number
Part Number Description D-06 PROBE TIP, TUNGSTEN, STRAIGHT, 0.6 μm , 1 SET OF 25 D-12 PROBE TIP, TUNGSTEN, STRAIGHT, 1.2 μm , 1 SET OF 25 D-24 PROBE TIP, TUNGSTEN, STRAIGHT, 2.4 μm, 1 SET OF 25 D-120 PROBE TIP, TUNGSTEN, STRAIGHT, 12 μm, 1 SET OF 25 D-250 PROBE TIP, TUNGSTEN, STRAIGHT, 25 μm, 1 SET OF 25 D-1200 PROBE TIP, TUNGSTEN, STRAIGHT, 120 μm , 1 SET OF 25 D-1500 PROBE TIP, TUNGSTEN, STRAIGHT, 150 μm , 1 SET OF 25 D-A06 PROBE TIP, TUNGSTEN, 45°, 0.6 μm, 1 SET OF 25 D-A12 PROBE TIP, TUNGSTEN, 45°, 1.2 μm, 1 SET OF 25 D-A24 PROBE TIP, TUNGSTEN, 45°, 2.4 μm, 1 SET OF 25 D-A120 PROBE TIP, TUNGSTEN, 45°,12 μm , 1 SET OF 25 D-A250 PROBE TIP, TUNGSTEN, 45°, 25 μm , 1 SET OF 25
